A modular aluminum slat system designed for fence, gate, enclosure, railing and screen applications.
Supplied as profiles, DIY kits or semi-finished panels, allowing flexible design and fast installation.
One system, multiple solutions — suitable for residential, commercial and architectural projects.

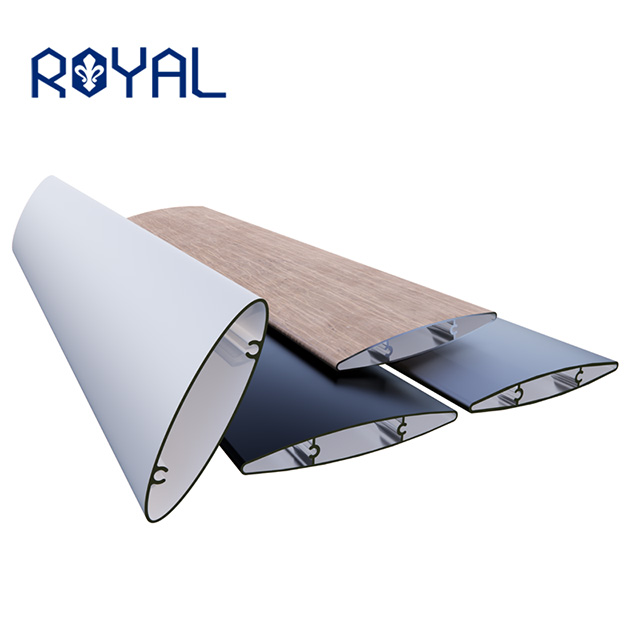

Our Aluminum Louver Series is a modular aluminum louver system designed for fence, gate, enclosure and screen applications.
The system can be supplied as individual louver profiles, DIY louver kits, or semi-finished / fixed louver panels, allowing customers to build customized solutions for residential, commercial and architectural projects.
This solution is ideal for fabricators, contractors, wholesalers and DIY users who require flexibility, durability and a clean modern appearance.
`

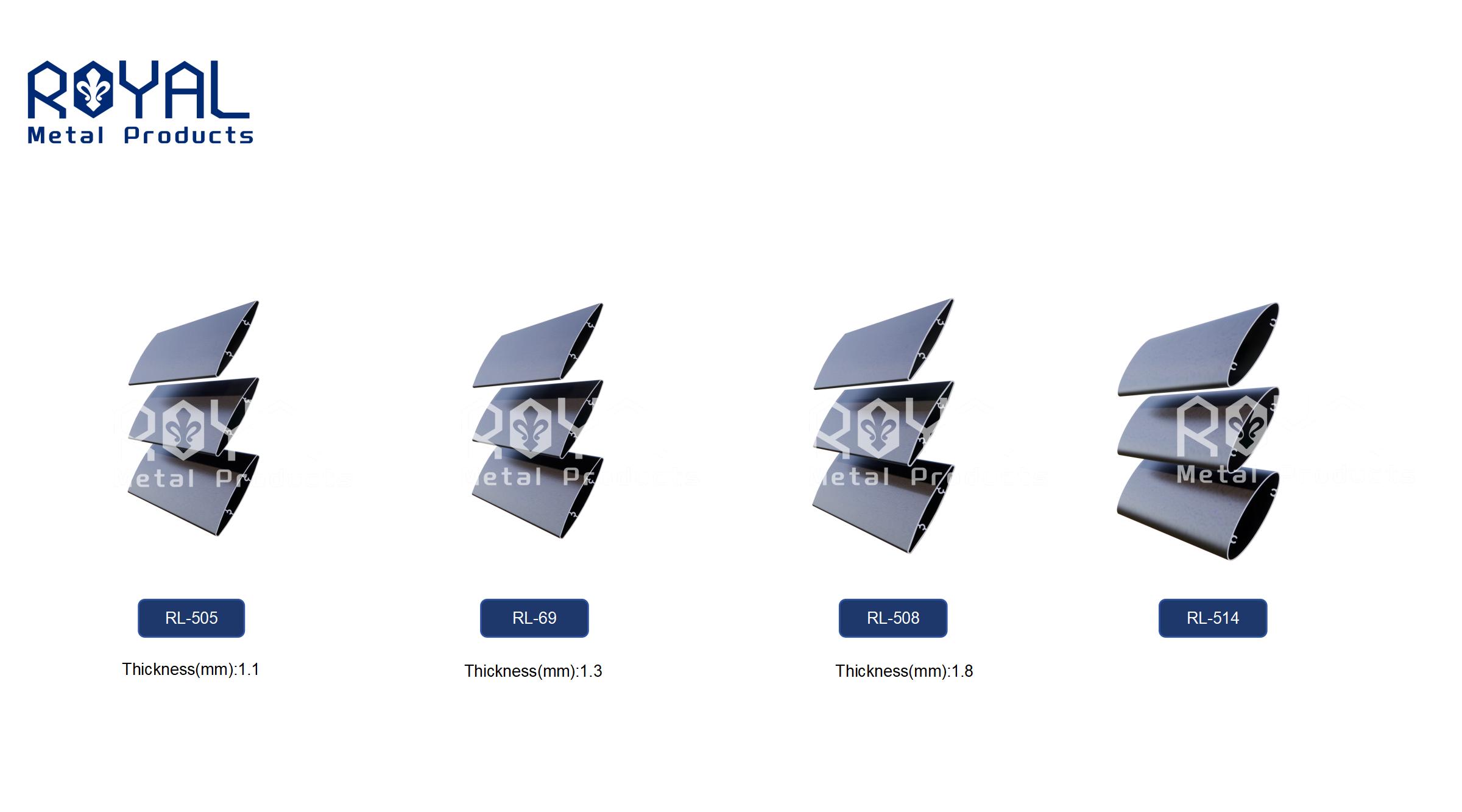

| Code | Width (mm) | Depth (mm) | Thickness(mm) | Weight (kg/m) |
| RL-505 | 120 | 18 | 1.10 | 0.81 |
| RL-69 | 120 | 18 | 1.30 | 0.98 |
| RL-508 | 120 | 18 | 1.80 | 1.373 |
| RL-514 | 100 | 25 | 1.30 | 0.854 |
1.10–1.30 mm: suitable for screens, enclosures and decorative fencing
1.80 mm: recommended for gates, high fences and wind-load applications
This aluminum louver system can be configured as:
✔ Louver Profiles Only
For customers who prefer full DIY fabrication or local assembly.
✔ DIY Louver Fence / Gate Kits
Including louver profiles, posts, rails, brackets and fixing accessories.
✔ Fixed or Semi-Finished Louver Panels
Ready-to-install panels for faster installation and consistent quality.

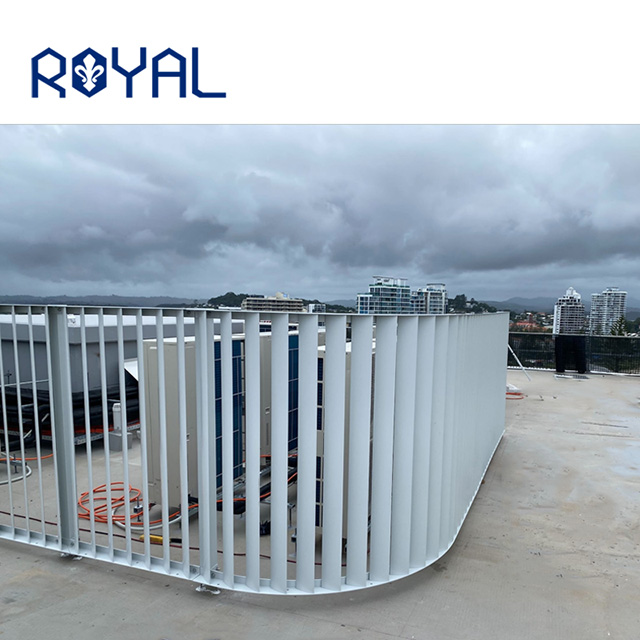

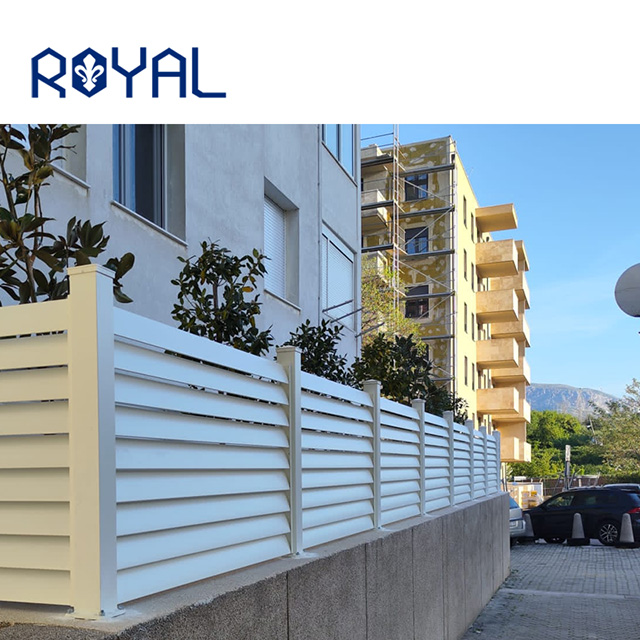

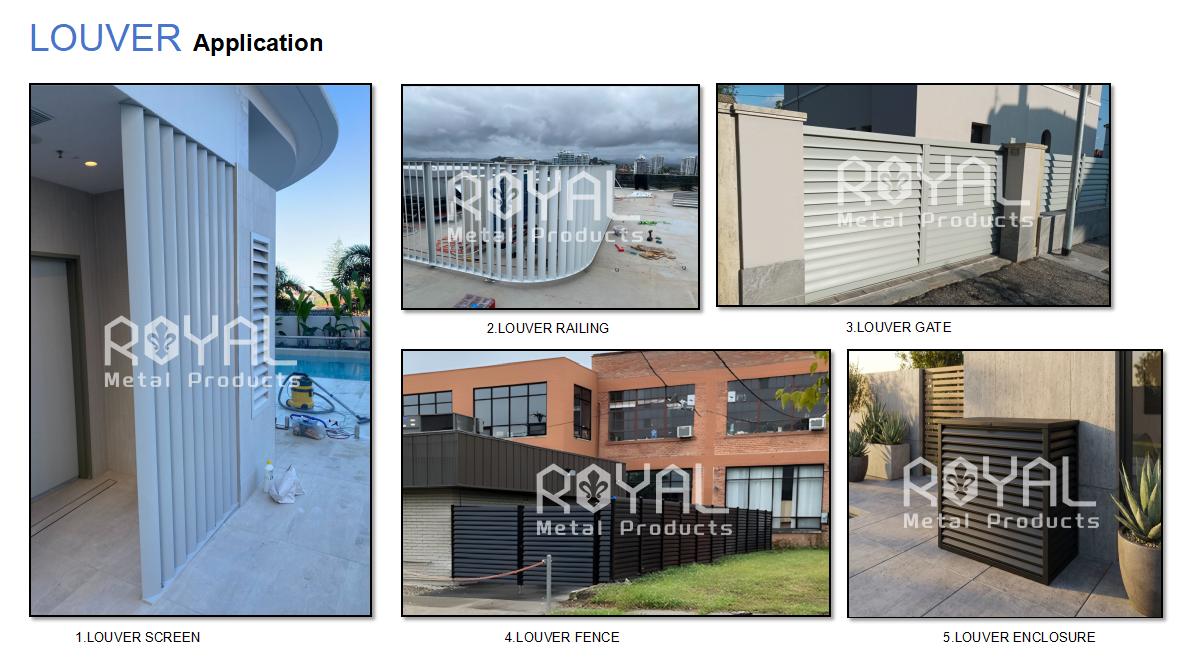

Privacy fencing
Residential and commercial perimeter fencing
Fixed or modular layout
Swing gates
Sliding gates
Pedestrian and driveway gates
Garden and backyard enclosures
Balcony and terrace screening
Architectural and privacy screens
One louver system, multiple applications.
Cut-to-length
Pre-drilling
Slotting
CNC punching
End-cap matching
Labeling & packaging per order sequence
Outdoor-grade powder coating
Woodgrain transfer
Anodized finish (optional)
Custom colors available upon request.
We offer a full range of matching profiles and accessories for this slat,
allowing you to easily build your own fence, gate, or screen.
Feel free to follow our recommended combinations or re-create your own style —
quick, flexible, and budget-friendly.
Don’t want to cut or process the profiles by yourself?
Just send us your drawings or measurements — we handle all the engineering work for you.

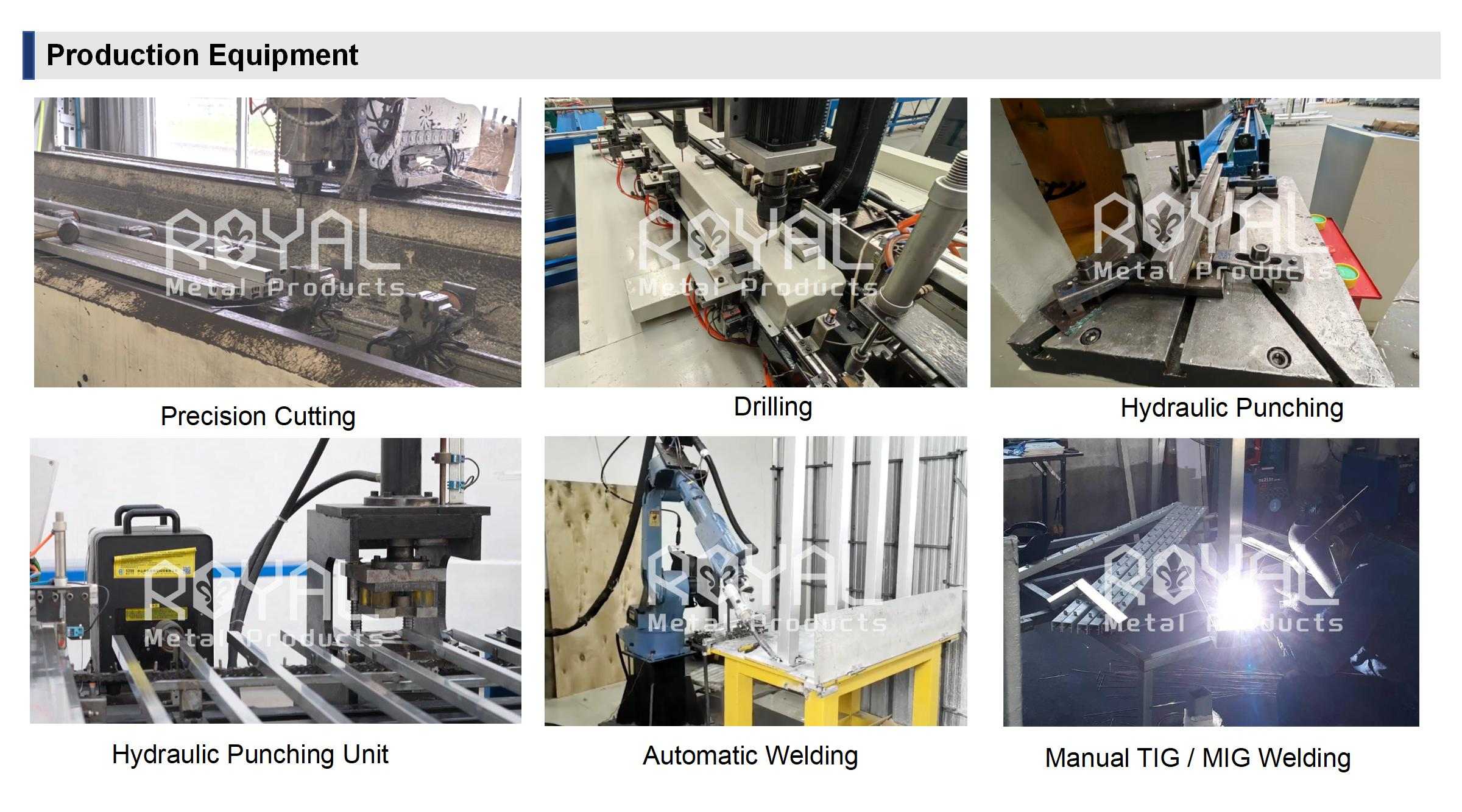

We provide a full range of semi-finished processing options:
Precision Cutting – Clean and accurate cuts for all aluminum profiles.
Drilling – Hole drilling based on your installation requirements.
Punching – High-efficiency punching for slat, fence, gate, and panel profiles.
Countersinking – Smooth, flush-fit screw seating for cleaner installation.
Reaming / Hole Cleaning – Ensuring precise tolerances and clean hole edges.
You will receive ready-to-assemble components, helping you:
✔ Save installation time
✔ Reduce labor
✔ Avoid on-site errors
From material matching to semi-finished processing, we help you finish your project faster and easier.
